The Complete Guide for Events and Venues
The star LED dance floor is the workhorse of DanceFloorLED's lineup: a floor that layers a field of twinkling stars over a deep, mirrored base, then gives you 96 built-in effects to keep the room moving. It is the model most event rental companies start with, because it fits weddings, DJ sets, school dances, and corporate mixers without changing a single panel. This guide explains how the effect works, the specs that matter, and how to size it for the crowd you are serving.
Fact: DanceFloorLED has 13 years of LED dance floor manufacturing experience and has delivered over 100,000 sets with a 98%+ on-time delivery rate.
What Is a Star LED Dance Floor?
A star LED dance floor is an LED dance floor that combines a 3D infinite mirror effect with a starry pattern. The mirrored base gives the floor depth, while point-source LEDs scattered across the surface read as a field of stars. The two layers together create an immersive, night-sky look that keeps changing through the evening.
This dual effect is what separates the star floor from a plain lit floor and from the single-depth 3D abyss. The star floor is built to be versatile: it looks right at a black-tie wedding and at a sweaty DJ set, which is why DanceFloorLED positions it as the most popular model for rental fleets.
DanceFloorLED's version runs on SMD 5050 RGB LEDs over 10mm tempered glass, with a 600-700kg per-panel load rating. See the star LED dance floor product page for the full specification sheet.

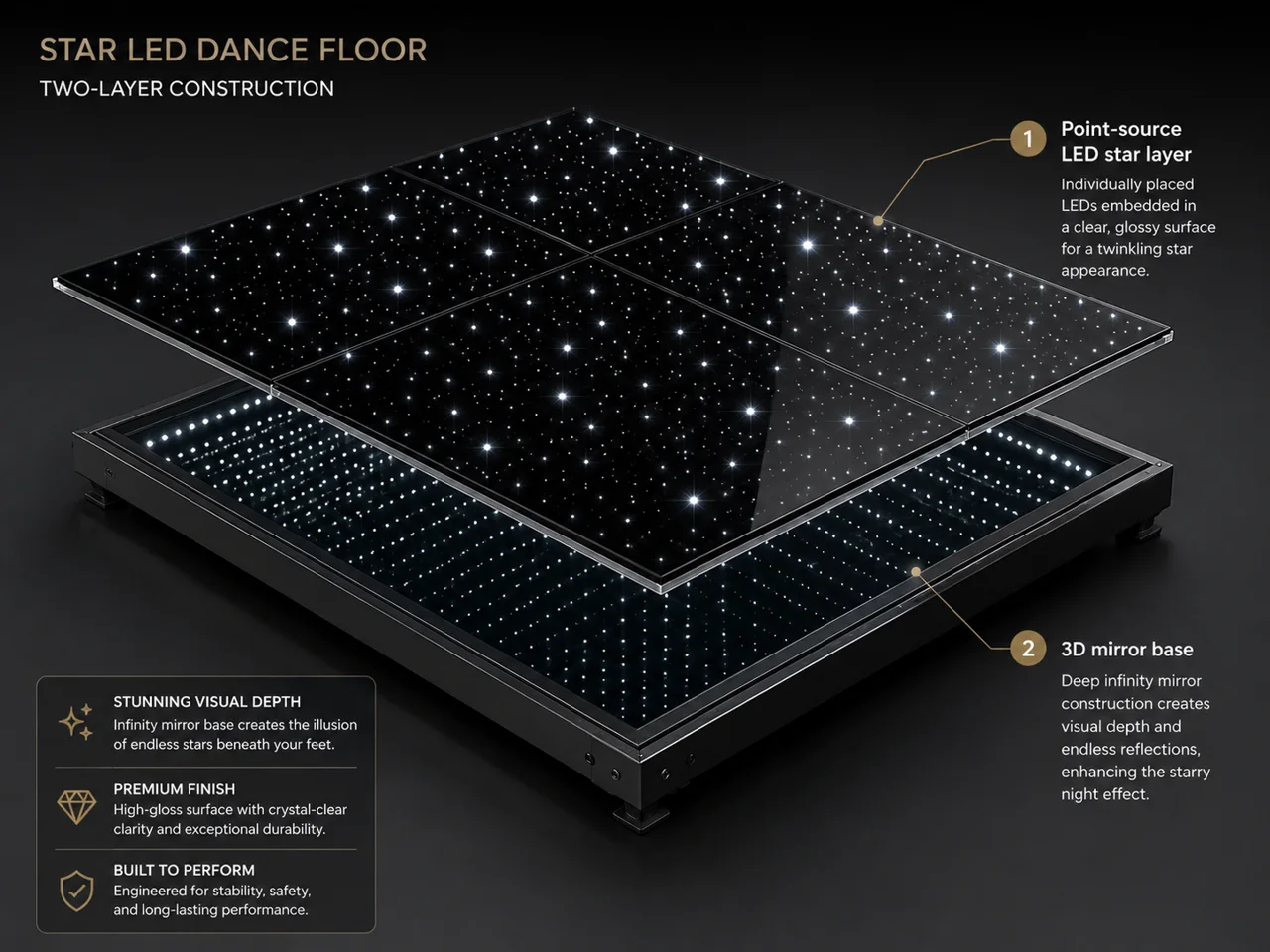

How the Twinkling Effect Works
The effect layers two visuals rather than relying on one.
The base is a 3D mirror that reflects LED light back and forth to create depth. On top of that depth, the surface scatters point-source LEDs that read as individual stars. The SMD 5050 RGB chips render at 16.7 million colors, so the points can shift through any hue without banding.
The 96 built-in effects are what turn that static setup into motion. The preset library cycles the points through twinkles, waves, chases, and color sweeps, so the floor never holds one look for long. For a deeper look at how the mirror layer works, see the 3D abyss LED dance floor guide.
Specs That Decide Performance
The differences between dance floors are in the numbers, not the product photos. Here are the specs that predict how a star floor will hold up:
Spec | DanceFloorLED Star | Why it matters |
|---|---|---|
Visual effect | 3D mirror depth + starry pattern | Dual look that fits a wide range of events |
Built-in effects | 96 dynamic presets | Runs a full event without a technician |
Glass | 10mm tempered | Survives heels, jumping, and heavy traffic |
Load capacity | 600-700kg per panel | Handles dense crowds and heavy use |
LED type | SMD 5050 RGB | Standard chip with wide color range |
Colors | 16.7 million (full RGB) | Smooth transitions with no banding |
Refresh rate | 2000Hz | Check the camera, shutter and lighting setup for the intended recording |
LED lifespan | 10+ years (LED-source statement on Star; not whole-product life or warranty) | Roughly 10 years of use |
Power | Configured electrical demand to be specified; no confirmed per-panel 20 W basis | About 30% of a traditional fixture's draw |
Waterproofing | IP67 | Outdoor use in rain and spills |
Fact: The star LED dance floor combines a 3D infinite mirror effect with a starry pattern, 96 built-in dynamic effects, and a 600-700kg per-panel load rating.
Sizes and How Many Guests They Fit
Sizing a dance floor is about how many people will be on it at once, not how many people are at the event. Most guests cycle on and off, so you size for the peak simultaneous dancers:
Floor size | Dancers at once | Total guests |
|---|---|---|
10x10 ft | 10-20 | 60 |
12x12 ft | 30-40 | 100 |
15x15 ft | 50-60 | 150 |
16x16 ft | 60-80 | 180 |
18x18 ft | 70-80 | 200 |
20x20 ft | 100-120 | 250 |
24x24 ft | 120+ | 400 |
For a 100-guest wedding, a 12x12 ft floor is the standard answer. The most popular sizes for rental fleets are 20x20 ft and 16x16 ft, because they cover most corporate events and mid-size weddings without over-buying panels. For the full size calculator, see the LED dance floor size guide.
Control Options
The star floor accepts six control methods, and which one you use depends on who is on site:
SD card controller: preloaded effects, run-and-forget for unattended setups
DMX512: integrates with a professional lighting console for stage shows
DMX /remote /controller options; do not infer Star PC/tablet-Madrix compatibility from Abyss
APP: wireless control from a phone, iOS and Android
Remote: 50m range, switch effects mid-event without walking to the booth
The Star source lists Voice without defining its activation mode; no sound-trigger function is inferred.
For a rental company, the remote and SD card mode are the two that save labor. With 96 presets to choose from, you hand the client a remote or preload a loop and walk away.

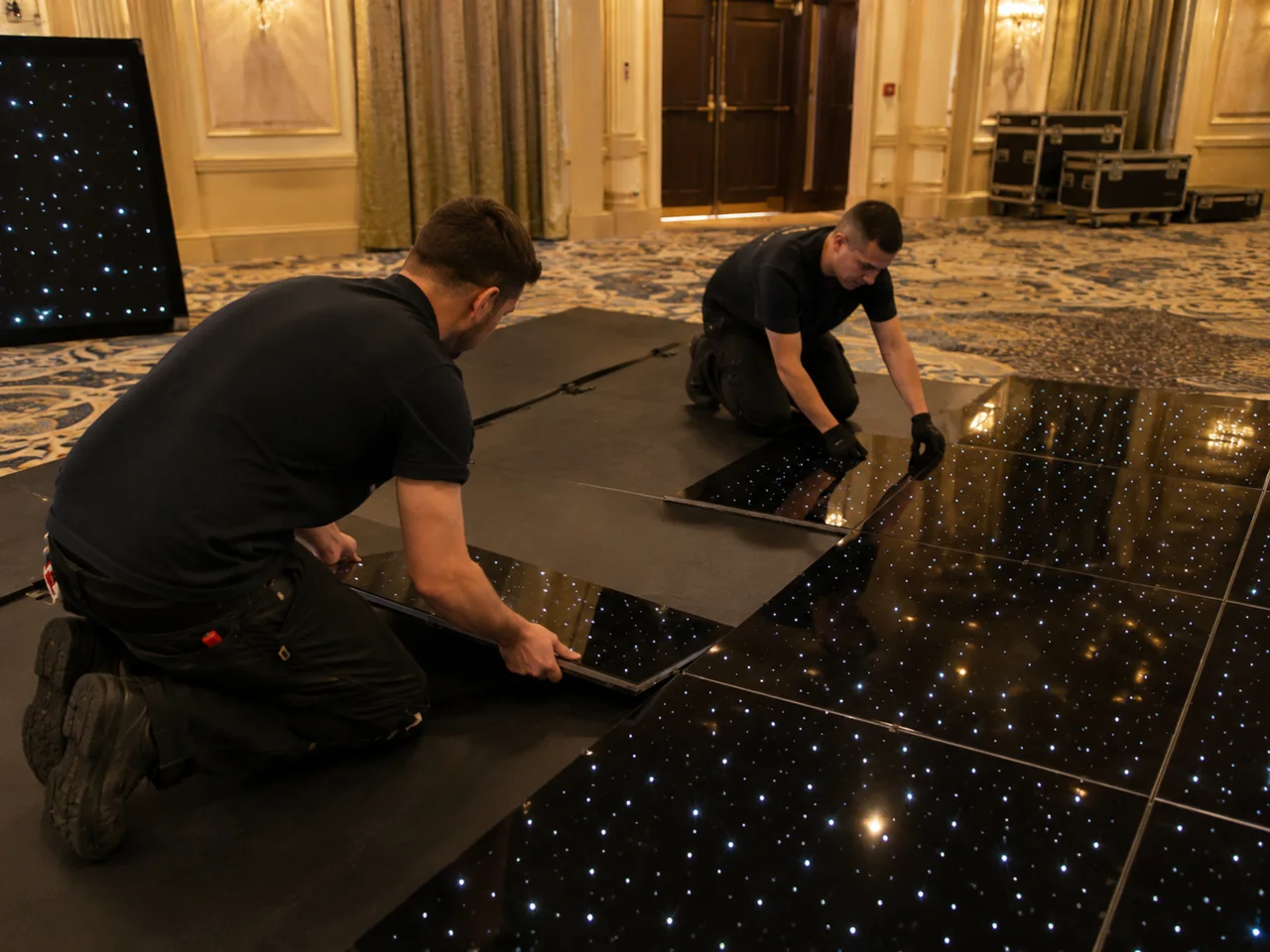

Installation: The Magnetic Snap System
Setup time is where a dance floor earns its keep or loses it, and the star floor is built for speed.
Setup time depends on the floor size, connection option, crew and site tasks. The source describes approximately 30 minutes for two people building a nominal 20 × 20 ft layout; that example is not a guaranteed time for every floor. Include unloading, positioning, power and control connection, testing and breakdown in the crew schedule.
Measure your crew’s complete turnaround for the chosen layout before estimating jobs per evening or labour savings. Panel joining is only one part of delivery, setup and testing.
Battery configuration and environmental limits
The star LED dance floor runs on battery, which opens up outdoor jobs that a wall-outlet floor cannot touch.
The product FAQ describes a rechargeable option with a 6000 mAh battery, a 2–3 hour charge time and approximately 10 hours of use. These figures apply to that option. Select the battery, controller and charging configuration for the order; do not assume the separate 26-hour or 36-hour range options are upgrades for this model. Battery power does not permit use in rain.
If you plan to book outdoor events, look for the combination of battery power plus an IP rating, not one or the other.
Where the Star Shines
The star floor's dual effect and 96 presets make it the most flexible floor in the lineup. Here is where it earns the most:

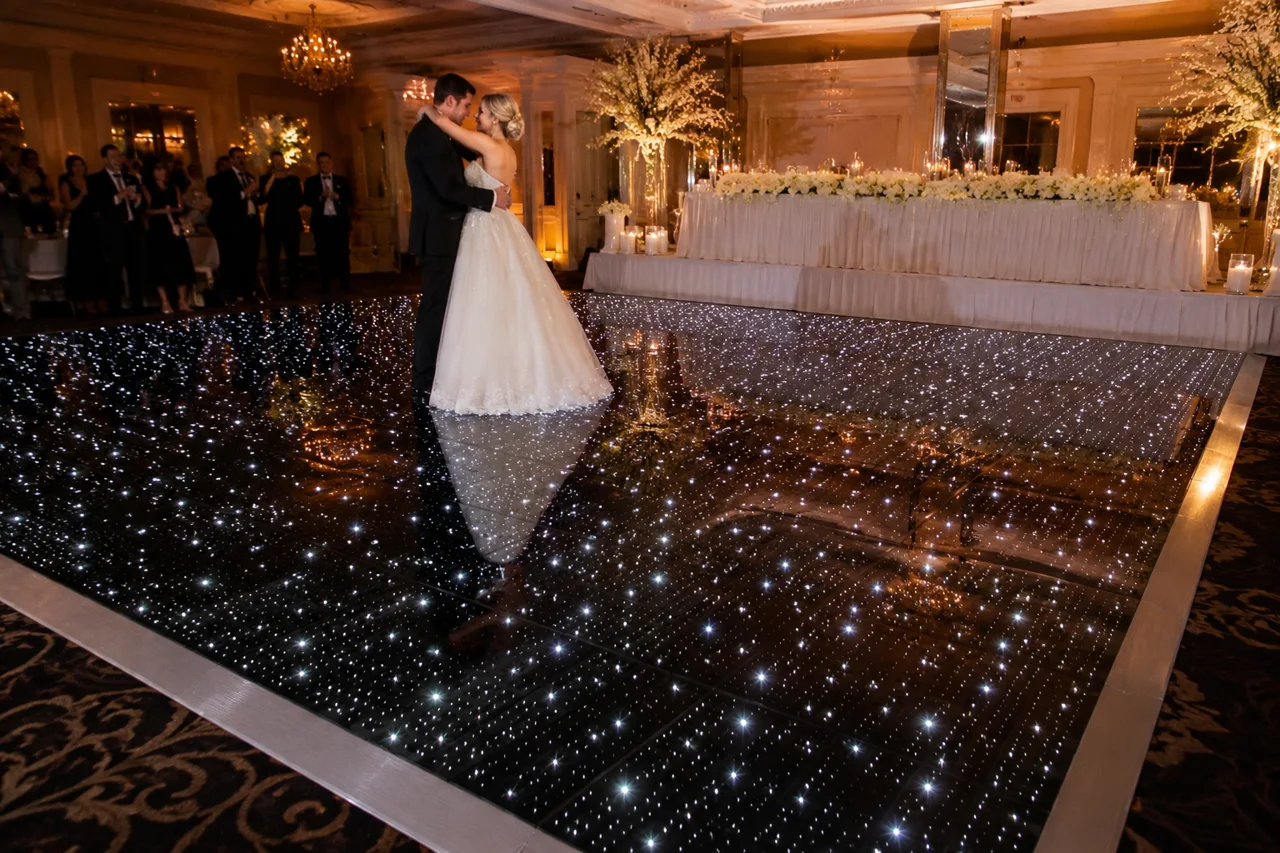

Weddings: the twinkling pattern photographs well and reads as elegant on a first dance.
DJ sets and clubs: select the 96 built-in effects and the documented controller options for the event.
School dances and theme parties: the starry look fits a young, high-energy crowd.
Corporate mixers: a branded, moving floor reads as premium without the custom-content cost.
If you need to display a logo or text on the floor itself, that is the job of the pixel LED dance floor, which is built for custom content.
Star vs 3D Abyss (and Pixel)
DanceFloorLED makes four LED dance floor lines, and the star sits between the single-effect abyss and the custom-content pixel. Here is the quick version:
Feature | Star | 3D Abyss | Pixel |
|---|---|---|---|
Visual effect | 3D mirror + starry pattern | Infinite depth mirror | Custom text, logo, animation |
Built-in effects | 96 presets | Light depth patterns | Custom content |
Load capacity | 600-700kg per panel | 600–700 kg per panel (product FAQ; loading conditions not specified) | 10 mm tempered glass; vehicle load approval is not established |
Best for | Volume: weddings, parties, DJ | Premium: upscale weddings, clubs | Branded corporate events |
The star is the volume pick, the abyss is the premium pick, and the pixel is the custom-content pick. For the full star-vs-abyss decision, see the 3D abyss vs star comparison.
FAQ
What is a star LED dance floor?
A star LED dance floor is an LED dance floor that combines a 3D infinite mirror effect with a starry pattern, so the surface reads as a field of stars floating over a deep, mirrored space. DanceFloorLED's star floor carries 96 built-in dynamic effects and a 600-700kg per-panel load rating, which makes it the most popular model for event rental companies that need a versatile, high-volume floor.
How does the twinkling star effect work?
The effect layers two visuals. The panels use a 3D mirror base that creates depth, with point-source LEDs scattered across the surface to form a starry pattern. The SMD 5050 RGB LEDs render at 16.7 million colors, and the 96 built-in effects cycle the points through twinkles, waves, chases, and color sweeps, so the floor keeps moving instead of holding one static look.
How many effects does a star LED dance floor have?
DanceFloorLED's star LED dance floor ships with 96 built-in dynamic effects, the widest preset library in the lineup. That range covers twinkles, chases, waves, and color transitions, so an operator can hand a client a remote or preload a loop and let the floor run an entire event without a technician.
How much weight can a star LED dance floor hold?
DanceFloorLED rates the star floor at 600-700kg per panel on 10mm tempered glass. That is enough for dense dance crowds and heavy use, and it is one reason the star floor is the workhorse pick for rental fleets that put floors through hundreds of events.
What size star LED dance floor do I need for 100 guests?
For a 100-guest event, a 12x12 ft floor is the standard, holding 30-40 dancers at once. Sizing follows peak simultaneous dancers, not total attendance, because most guests cycle on and off the floor. For the full breakdown from 10x10 ft up to 24x24 ft, see the size table in this guide.
Can I use a star LED dance floor outdoors?
The product FAQ describes a rechargeable option with a 6000 mAh battery, a 2–3 hour charge time and approximately 10 hours of use. These figures apply to that option. Select the battery, controller and charging configuration for the order; do not assume the separate 26-hour or 36-hour range options are upgrades for this model. Battery power does not permit use in rain.
How long does it take to set up a star LED dance floor?
Setup time depends on the floor size, connection option, crew and site tasks. The source describes approximately 30 minutes for two people building a nominal 20 × 20 ft layout; that example is not a guaranteed time for every floor. Include unloading, positioning, power and control connection, testing and breakdown in the crew schedule.
How is the star different from the 3D abyss?
The 3D abyss is a single continuous depth effect built for premium bookings, while the star layers a starry pattern over a 3D mirror base and adds 96 built-in effects. The star is the higher-volume, more versatile pick; the abyss is the premium centerpiece. A full comparison is in the 3D abyss vs star guide.
Conclusion
The star LED dance floor is the floor most rental fleets should buy first. The dual effect gives it the depth of a mirror floor and the motion of 96 presets, and the 600-700kg load rating means it survives the volume.
Start with the size your typical job needs, then confirm the battery and control options you will actually use. See the star LED dance floor product page for the full specifications, or request a quote for your fleet.
Sources
1. DanceFloorLED. "Star LED Dance Floor." Product page, dancefloorled.com. https://dancefloorled.com/star-led-dance-floor (Primary source for the star product specifications, the 96-effect library, and the 600-700kg load rating.)
2. DanceFloorLED. "LED Dance Floor." Product overview, dancefloorled.com. https://dancefloorled.com/led-dance-floor (Source for the shared platform specifications and sizing guidance.)
Note: All technical specifications in this article are per manufacturer specifications, as stated on DanceFloorLED's official product pages. This is a product-specific technical guide, so no third-party market data is required or cited.
