Pixel LED Dance Floor
Create changing patterns across the dance floor using Windows software, a compatible tablet, DMX512 or a handheld remote. Text, logos and animation depend on the selected panel layout and programming. This product belongs to our programmable event-lighting range.
- Text, logos and patterns
- Programmable RGB lighting
- DMX512 or software control
Share your floor dimensions and destination. We’ll help plan the panel layout and accessory list.

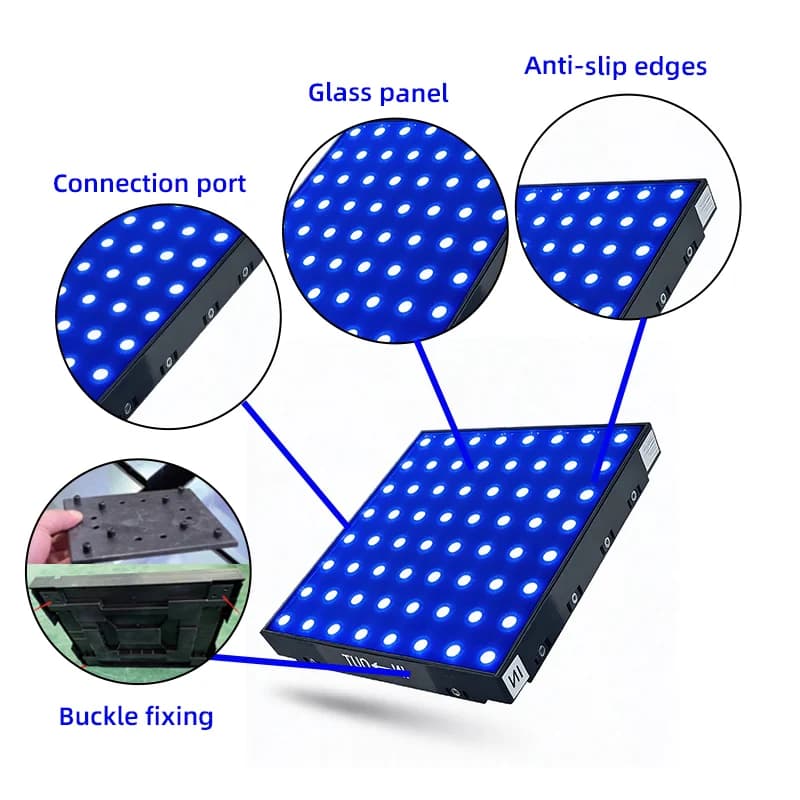

A closer look
at your floor.
Your ideas, in lights. Compare the panel specification and choose the control and connection options that fit your setup.
Confirm the complete system, electrical requirements and included accessories before ordering. Panel protection ratings do not define the weather suitability of the full installation.
| Panel options | 50 cm / 60 cm panelsNominal size labels; this page does not restate the full footprint or total height. |
|---|---|
| 50 cm panel weight | 11 kg per 50 cm panelFAQ does not separate wired, battery or surface-finish configurations. |
| 60 cm panel weight | 14 kg per 60 cm panelFAQ does not separate wired, battery or surface-finish configurations. |
| Connection options | Wired / magnetic / rechargeable magneticAlternative configurations; not one interchangeable hardware specification. |
| Control options | iOS or Android tablet / Windows software / DMX512 / remoteChoose the compatible controller and software for the floor configuration. |
| LED type | 5050 RGB LEDsLED component type; no high-resolution video pixel-pitch claim. |
| Colours | 16.7 million colours |
| Refresh rate | 2,000 HzPublished feature; camera-shutter test conditions not stated. |
| Tempered glass | 10 mmGlass surface thickness; not total panel height. |
| Panel protection | IP67; use away from outdoor rainOriginal page lists panel IP67. Power supplies and connections require their described protection; the FAQ on this product excludes outdoor rain. |
| Packing options | Flight case / CartonPacking style only; final case count, dimensions and gross weight depend on the quoted configuration. |
| LED luminous efficacy | 120 lm/WLED component efficacy; not complete-floor electrical demand. |
Request the documentation matched to your selected product configuration and destination market.
Make every part work together.
Panels & layout
Choose the effect and panel format. Share your usable floor length and width.
Power & control
Match power supplies and control options to the selected floor and your event workflow.
Edges & accessories
Plan perimeter edges, connections and recommended spares for your configuration.
Transport & packing
Specify flight cases or cartons to suit frequent event moves or a fixed installation.
A 6 × 6 m floor built from 50 × 50 cm panels needs 12 × 12 = 144 panels, before perimeter edges. Share the clear space and units so the layout can be checked for your project.
Pixel LED Dance Floor
in focus.

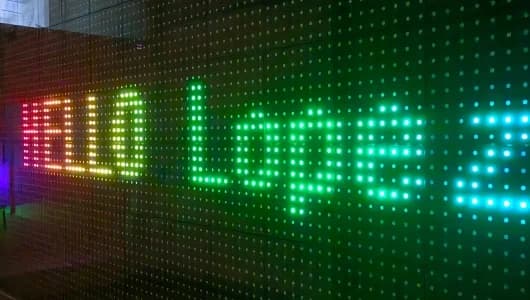

01What can the Pixel Dance Floor display?
The range supports custom text, logos, colour gradients and animated lighting patterns. The result depends on the panel layout, controller and programming selected for the floor.
02Can I use the floor outdoors in rain?
The panels are listed as IP67 and the range describes protection for accidental drink spills. The product FAQ explicitly says the floor cannot be used outdoors in rain.
03How much do the panels weigh?
The FAQ lists 11 kg for a 50 cm panel and 14 kg for a 60 cm panel. Flight cases and cartons are separate packing options.
04Which control systems are listed?
The page lists an iOS or Android tablet, Windows software, DMX512 and handheld remote control.
Great events
start here.
Tell us what you have in mind. We’ll help you choose the floor, layout and accessories for your business.
We supply dance floor equipment for purchase.
