This guide covers RGB, mirror, starlight and programmable pixel lighting dance floors. Video display floors and interactive sensor floors are outside the current product range.
The Complete Guide for Event Rentals and Venues
The 3D abyss LED dance floor is the piece of event equipment that turns a rented ballroom into a conversation piece. Guests look down, see an endless pit of color under their feet, and every photo from the night gets posted. For rental companies and venues, it is also a high-margin asset you can put in a trailer. This guide explains what the floor actually is, how the infinity effect works, which specs separate a durable floor from a fragile one, and how to size it for the crowd you are serving.
What Is a 3D Abyss LED Dance Floor?
A 3D abyss LED dance floor is an LED dance floor built with mirrored panels that create an "infinite depth" illusion under the dancer's feet. Instead of a flat, glowing surface, each panel reflects its own LED light downward and back up in a repeating pattern, so the floor appears to open into a bottomless pit of color.
The difference from a standard LED dance floor is the mirror layer. A regular floor is a grid of lit panels; an infinity mirror LED dance floor stacks LEDs under a semi-reflective mirror so light bounces between the glass and the reflective backing. That is what produces the depth.
DanceFloorLED’s 3D Abyss range combines a mirrored lighting effect with a 10 mm tempered-glass surface. Panel size, controls, power equipment and transport packing should be specified together.
Fact: DanceFloorLED has 13 years of LED dance floor manufacturing experience and has delivered over 100,000 sets with a 98%+ on-time delivery rate.

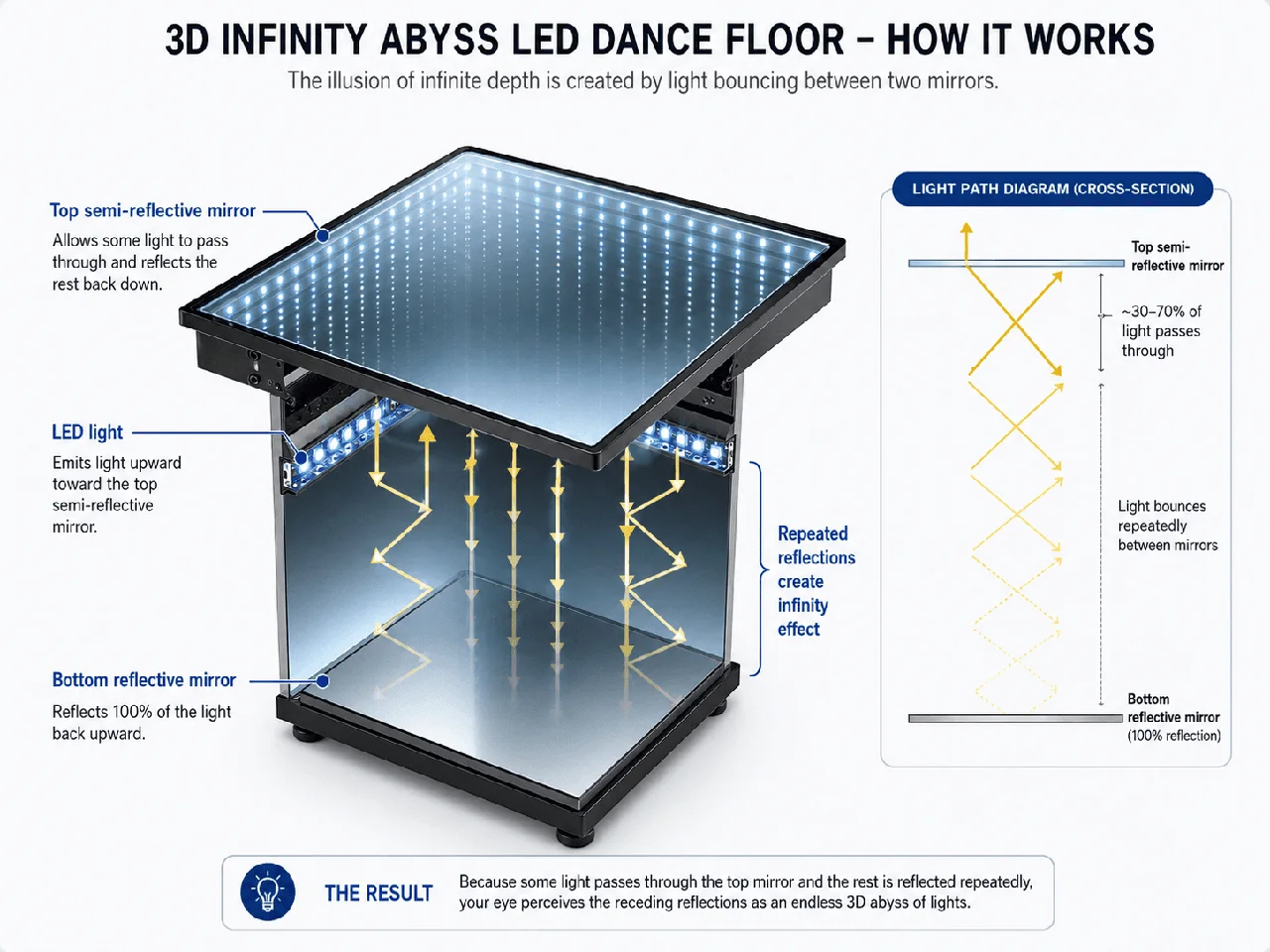

How the Infinity Abyss Effect Works
The trick is two reflective surfaces, not one. Light from the LED panel passes through a partially reflective mirror on top, hits a fully reflective layer below, and bounces back through the top mirror. Each bounce loses a little intensity but adds another layer of depth, which is why the eye reads it as infinite.
Two things make the effect convincing: the gap between the two mirror layers, and the brightness of the LEDs underneath. If the LEDs are too dim or the glass is too thick, the depth washes out into a flat glow. If the glass is too thin, it flexes under load and cracks.
The range uses 10 mm tempered glass. Load figures and test conditions must be matched to the selected panel; they do not establish approval for a vehicle or outdoor rain use.
Specs That Decide Performance
When you compare 3D abyss LED dance floors, the differences are in the numbers, not the photos. Here are the specs that actually predict how a floor will hold up on the job:
| Specification | 3D Abyss configuration | Scope |
|---|---|---|
| Panel size | 500 × 500 mm / 600 × 600 mm | Panel footprint; edge ramps excluded. |
| Connection | Magnetic panel connection | Connection between panels; battery power is a separate option. |
| Control options | SD card / PC / DMX / remote / app / sound / tablet | Select the controller configuration with the floor. |
| Software compatibility | PC control compatible with Madrix | Published PC compatibility statement. |
| Tempered glass | 10 mm | Glass surface thickness; not total panel height. |
| Panel protection | IP67; power-supply protection is separate | FAQ describes an optional protective casing for the power supply. Panel rating does not define complete-system weather suitability. |
| Packing options | Flight case | Packing style only; final case count, dimensions and gross weight depend on the quoted configuration. |
The two numbers that separate a professional rental asset from a toy are load capacity and waterproofing. If a panel cannot hold a crowd or cannot get wet, it limits which jobs you can book before you even load the trailer.
DanceFloorLED’s 3D Abyss product page lists 50 × 50 cm and 60 × 60 cm panels, 10 mm tempered glass and magnetic connections. Its IP67 panel rating does not define protection for the complete power and connection system.
Sizes and How Many Guests They Fit
Sizing a dance floor is about how many people will be on it at once, not how many people are at the event. Most guests cycle on and off, so you need enough floor for the peak simultaneous dancers. Here is the reference table DanceFloorLED uses:
Floor size | Dancers at once | Total guests |
|---|---|---|
10x10 ft | 10-20 | 60 |
12x12 ft | 30-40 | 100 |
15x15 ft | 50-60 | 150 |
16x16 ft | 60-80 | 180 |
18x18 ft | 70-80 | 200 |
20x20 ft | 100-120 | 250 |
24x24 ft | 120+ | 400 |
For a 100-guest wedding, a 12x12 ft floor is the standard answer. The most popular sizes for rental fleets are 20x20 ft and 16x16 ft, because they cover most corporate events and mid-size weddings without over-buying panels. For a full size calculator, see our LED dance floor size guide.
Control Options
One floor, several ways to run it. The 3D abyss LED dance floor accepts six control methods, and which one you use depends on who is on site:
SD card controller: preloaded effects, run-and-forget for unattended setups
DMX512: integrates with a professional lighting console for stage shows
PC control: Madrix compatibility is listed for the Abyss PC configuration; tablet and app options are separate choices.
APP: wireless control from a phone, iOS and Android
Remote: 50m range, switch effects mid-event without walking to the booth
Sound activation: the floor reacts to music, ideal for DJ sets
For a rental company, the remote and SD card mode are the two that save labor. You hand the client a remote, or you preload a loop and walk away. That is the difference between an asset you staff and an asset you drop off.

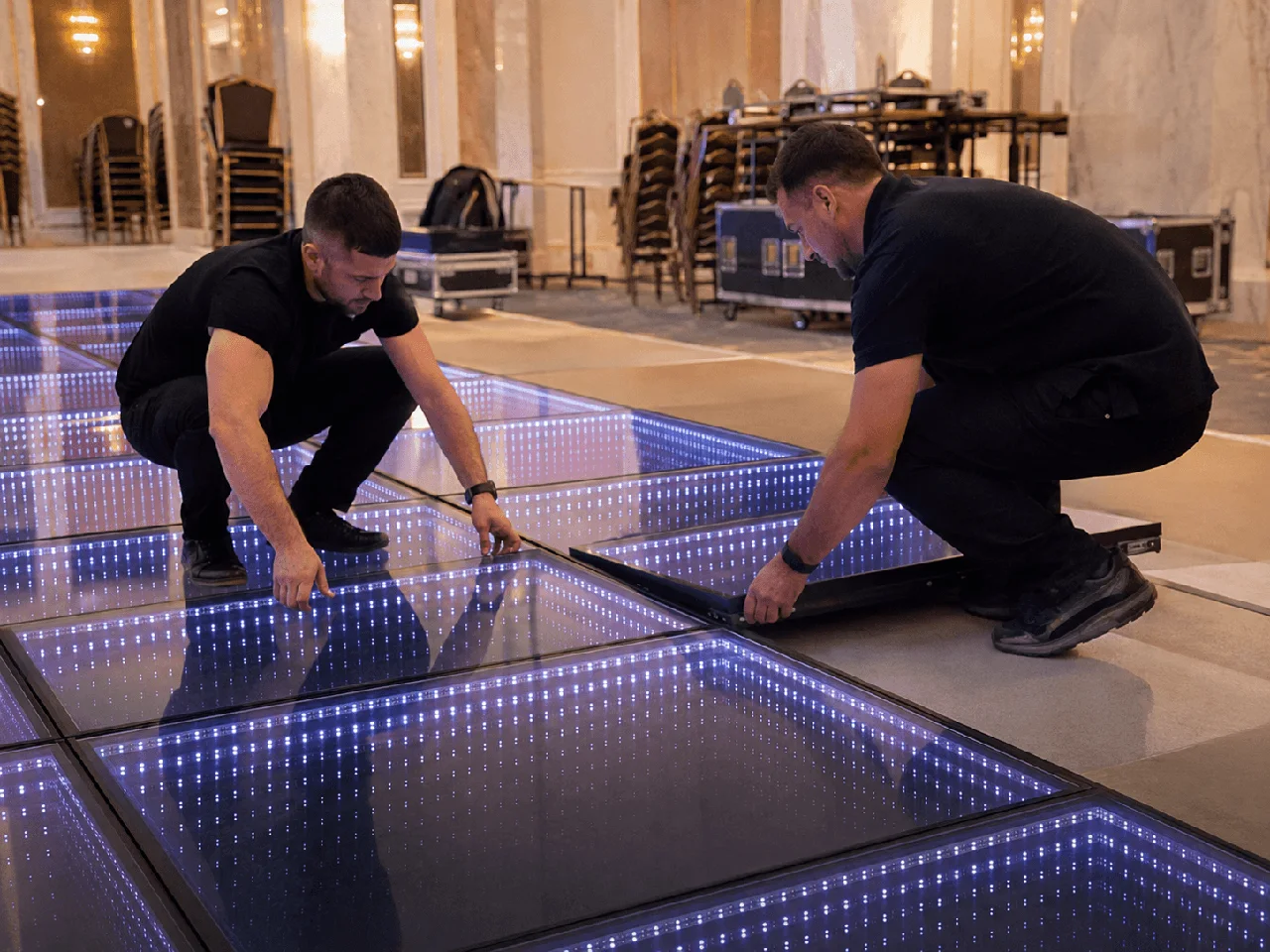

Installation: The Magnetic Snap System
Setup time is where a dance floor earns its keep or loses it. A 3D abyss LED dance floor with magnetic connectors goes together in a fraction of the time a wired floor takes.
Magnetic connections can simplify panel assembly. A single panel connection, a complete floor setup, and a transport-to-ready installation are different tasks. Request an installation demonstration for the size, connection version and crew plan you will use.
Use a timed setup trial for the actual layout and crew before planning back-to-back bookings or calculating labour cost.
Battery and Weather-Protection Configuration
A rechargeable configuration can serve a site without convenient mains power. Battery power is a supply choice, not approval for outdoor weather exposure; the complete floor, connections and power equipment must suit the proposed site.
The rechargeable FAQ describes 6000 mAh, 2–3 hours of charging and about 10 hours of operation. Separate overview content mentions 26-hour and 36-hour options without tying them to a specific Abyss configuration. Confirm the selected battery system and runtime in the order specification. A panel IP rating does not make the power box or installation rain-ready.
For an outdoor enquiry, assess site conditions and the complete power and connection arrangement separately. Battery power plus a panel IP rating does not establish rain operation or protection for the power equipment. Wired and magnetic systems need a configuration-specific power plan; do not assume a separate mains run to every panel.
For 3D Abyss, the product-page labels are CE and RoHS, with LVD and EMC test-report labels. These do not establish a CNAS product certificate or the documentation for another product range.
Where the 3D Abyss Shines
The infinity effect does different work depending on the event. Here is where it earns the most:
Weddings: the mirror effect photographs well and gives the first dance a centerpiece. See the wedding size guide.
Nightclubs and bars: the depth effect plus sound-activated modes turn the floor into part of the lighting rig.
Music festivals: assess the complete site, floor, power and protection plan; the panel rating is not a general authorization for rain operation.
Corporate events and product launches: a branded floor reads as premium for sponsors and guests.
Auto shows: request a separately assessed installation and load plan. The source’s per-panel figures do not establish a vehicle-use rating.
3D Abyss vs Other LED Dance Floors
DanceFloorLED makes four LED dance floor lines, and they are easy to confuse if you have only seen product photos. Here is the quick version:
Feature | 3D Abyss | Star | Pixel | Abyss Frosted |
|---|---|---|---|---|
Visual effect | Infinite depth mirror | Starry night pattern | Custom text, logo, animation | Frosted plus mirror rainbow |
Best for | Premium weddings, clubs | Themed parties, DJ sets | Branded corporate events | Mixed indoor/outdoor decor |
Signature strength | Depth illusion plus load rating | 96 effects, high popularity | Pixel control, custom display | Dual texture, rainbow blend |
If you want the deepest, most photographed "wow" effect, the 3D Abyss is the pick. If you need to display a logo or text on the floor itself, the Pixel is the better tool. For a fuller breakdown, see the different types of LED dance floor.
FAQ
What is a 3D abyss LED dance floor?
A 3D abyss LED dance floor is an LED dance floor whose panels use a mirrored surface to create a deep, repeating abyss effect under the dancer's feet. Instead of a flat glowing grid, each panel stacks LEDs under a semi-reflective mirror, so the light appears to descend into an endless pit of color. It is the premium version of a standard LED dance floor, used where the floor itself is meant to be the visual centerpiece.
How does the infinity abyss effect work?
The effect is built with two reflective surfaces. LED light passes through a partially reflective top mirror, hits a fully reflective layer underneath, and bounces back through the top again. Each bounce loses a little brightness but adds another visual layer, so the eye reads the repeating reflections as infinite depth. The quality of the illusion depends on the gap between the two mirrors and the brightness of the LEDs underneath.
How much weight can a 3D abyss LED dance floor hold?
The 3D Abyss source has a 500 kg+ technical highlight and a separate 600–700 kg per-panel FAQ value. These figures are distinct source statements; confirm the applicable test conditions for the selected panel. They do not establish a vehicle installation specification.
Are 3D abyss LED dance floors waterproof?
The panel is listed as IP67. The product FAQ describes an optional protective casing for the power supply, so panel protection cannot be assigned to the power box or wiring as a whole. Review the complete installation and weather conditions before outdoor use.
What size 3D abyss LED dance floor do I need for 100 guests?
For a 100-guest event, a 12x12 ft floor is the standard size, holding 30-40 dancers at once. The rule of thumb is to size for peak simultaneous dancers, not total attendance, because most guests cycle on and off. If the event skews young or dancing is the main activity, step up to 15x15 ft for breathing room.
Can I use a 3D abyss LED dance floor outdoors?
Battery power and panel protection are separate configuration questions. The rechargeable FAQ describes a 6000 mAh battery, 2–3 hours charging and about 10 hours runtime; the separate 26/36-hour overview options are not mapped to an Abyss version. Confirm the complete floor, connections and power arrangement for the proposed site.
How long does it take to set up a 3D abyss LED dance floor?
Setup time depends on the floor size, connection option, crew and site tasks. The source describes approximately 30 minutes for two people building a nominal 20 × 20 ft layout; that example is not a guaranteed time for every floor. Include unloading, positioning, power and control connection, testing and breakdown in the crew schedule.
How do I control the lights on a 3D abyss LED dance floor?
Control options include SD card, PC, DMX, remote, app, sound and tablet, depending on the selected controller. The published PC compatibility statement names Madrix; it does not establish every tablet/app function or controller configuration.
Conclusion
The 3D abyss LED dance floor is one of the few rental assets that pays for itself on visual impact alone. The infinity effect makes it the thing guests remember and post, and the specs (tempered glass, load rating, IP67, battery) decide whether it survives the season.
Start with the size your typical job needs, then verify the load rating, waterproofing, and connection type before you compare prices. If you are outfitting a rental fleet or a venue, request a specification sheet and a sizing recommendation for your market, or browse the full 3D Abyss product page to confirm the details that matter.
Sources
1. DanceFloorLED. "3D Abyss LED Dance Floor." Product page, dancefloorled.com. https://dancefloorled.com/3d-abyss-led-dance-floor (Primary source for product specifications: tempered glass thickness, load rating, IP rating, LED type, refresh rate, control methods, and installation speed).
2. DanceFloorLED. "LED Dance Floor." Product overview, dancefloorled.com. https://dancefloorled.com/led-dance-floor (Source for sizing guidance: floor size vs. dancer capacity vs. total guests, and company production figures).
Note: All technical specifications and sizing figures in this article are per manufacturer specifications, as stated on DanceFloorLED's official product pages. This is a product-specific technical guide, so no third-party market data (market size, growth rates, or pricing benchmarks) is required or cited.
